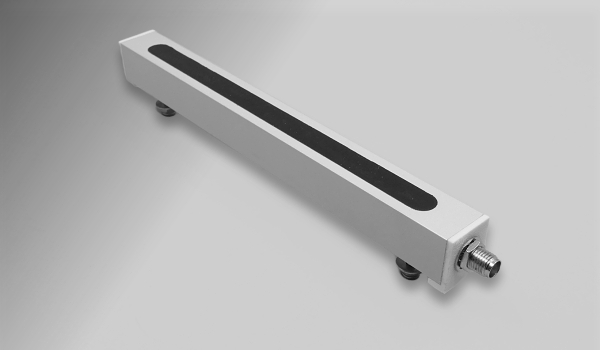

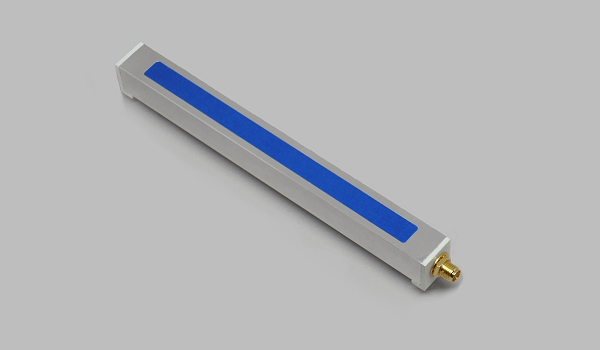

UHF RFID slot antenna

The UHF RFID Slot Antenna is designed for RFID applications in automation, process monitoring, and industrial environments.

Key Benefits:

Compact Design: The slot design makes it smaller than traditional dipole antennas. This allows it to fit in tight spaces.
Focused Signal: Slot antennas are built to direct signals in specific directions. This is ideal for applications that need controlled coverage.

In summary, the UHF RFID Slot Antenna works in the UHF frequency range 865 -868 MHZ and 902 – 928 MHz.
It provides reliable communication with RFID tags over short distances.

Are you in need of RFID antennas specifically designed for industrial and robotic applications? If you have not found the right solution for your specific needs, we are here to assist you. Please do not hesitate to reach out to us for a consultation regarding your requirements. We are dedicated to providing tailored solutions that meet your expectations.

Follow us on Twitter where you can see our latest custom-made solutions.

UHF RFID slot antenna

                        ⊕ Click to expand

DescriptionOrder numbers

Frequency: 865 – 868 MHz
902-928 MHz
Polarized antenna: Linear
Gain: -1.0dBi
VSWR: < 1.4
Impedance: 50 Ohm
Dimension: 150mm x 15mm x 15mm
Slot: 7mm
IP Classification: IP 67
Operating Temperature: -20°C + 75°C
Material: Aluminium + PP
Applications: Suitable for UHF RFID Near Field applications (precise identification) with a reading distance up to 12cm/1W ERP



H86-AS7-SMA: UHF RFID slot antenna, EU Frequency range 865 – 868MHz, SMA Female Connector
H92-AS7-SMA: UHF RFID slot antenna, US Frequency Range 902 – 928MHz, SMA Female Connector
